Product Portfolio

Precision-engineered actuation & control.

A complete portfolio of industrial pneumatic, electric, and hydraulic actuators, scotch yoke systems, gearboxes, and smart accessories — every product manufactured to international standards and certified for KSA and GCC energy, utility, and process sectors.

7 Product Divisions

Download Catalogs

Best Seller

Torque Range

25 — 8,000 Nm

Operating Pressure

2 — 8 Bar

Rotation Range

90° / 180°

Duty Rating

Continuous S1

Category 01

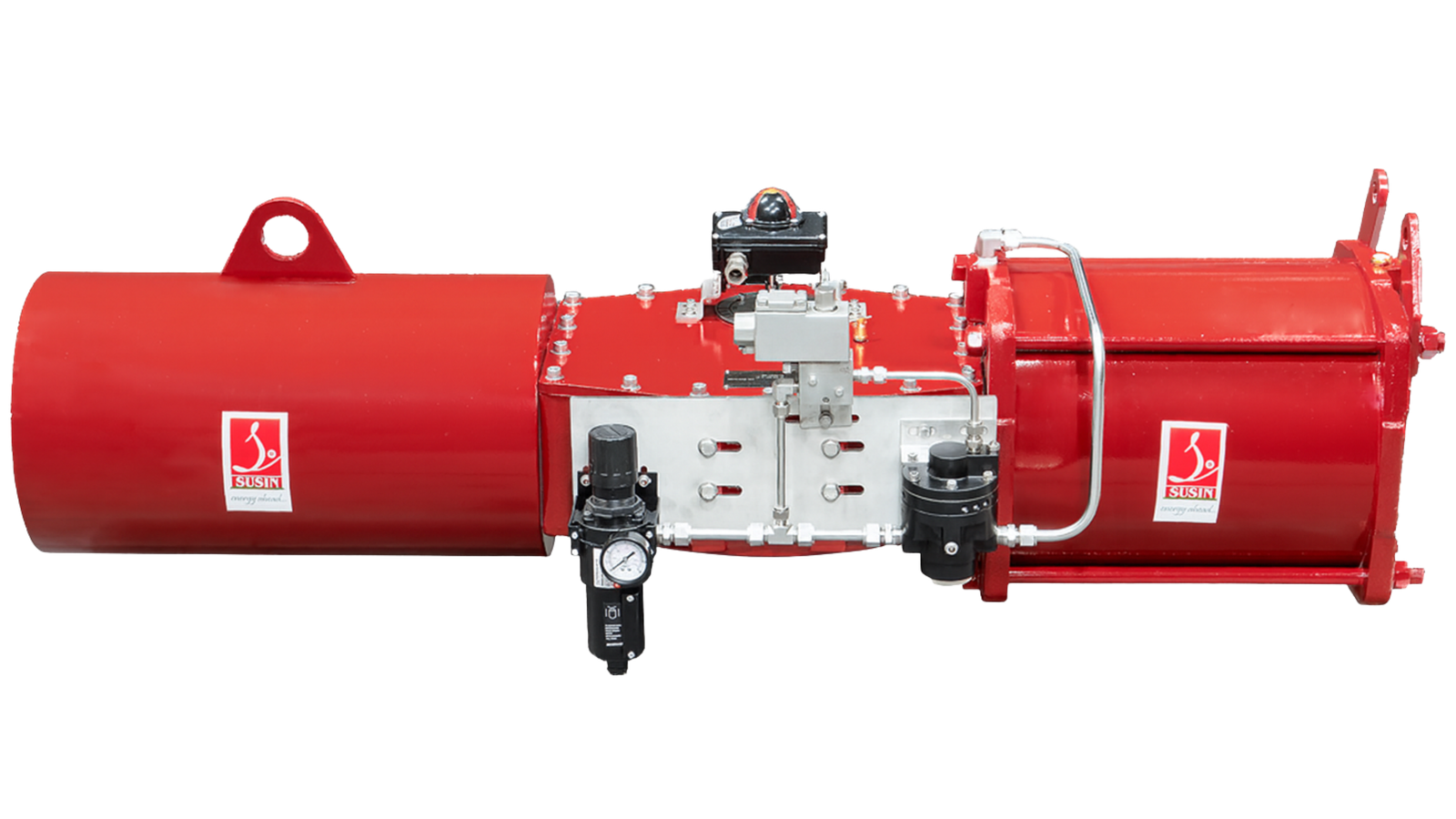

Rotary Pneumatic Actuators

High-performance rotary pneumatic actuators engineered for demanding quarter-turn valve automation across industrial utilities.

Corrosion-resistant anodized aluminium body
Spring return or double-acting configurations
ISO 5211 mounting flange for global compatibility
NAMUR interface for direct accessory mounting
ATEX and IECEx certified for hazardous environments
Temperature rating options from -40°C to +120°C

Technical Specs Request Callback

Heavy Duty

Output Torque

1,000 — 250,000 Nm

Supply Pressure

3 — 12 Bar

Design Life

Over 1 Million Cycles

Safety Rating

SIL 3 Capable

Category 02

Scotch Yoke Actuators

Heavy-duty pneumatic scotch yoke design engineered to produce high start-and-end torque for large pipeline and process valves.

Symmetrical and canted yoke options for optimized sizing
Modular cylinder and spring pack assemblies
High-integrity carbon steel structural body
Emergency Shutdown (ESD) fast-closing options
Corrosion protection suitable for marine environments
Direct API 6D pipeline valve compliance

Technical Specs Request Callback

Compact

Output Torque

8 — 5,000 Nm

Rotation Adjust

90° ± 5° travel stops

Working Media

Dry or lubricated air

Standards

NAMUR / ISO 5211

Category 03

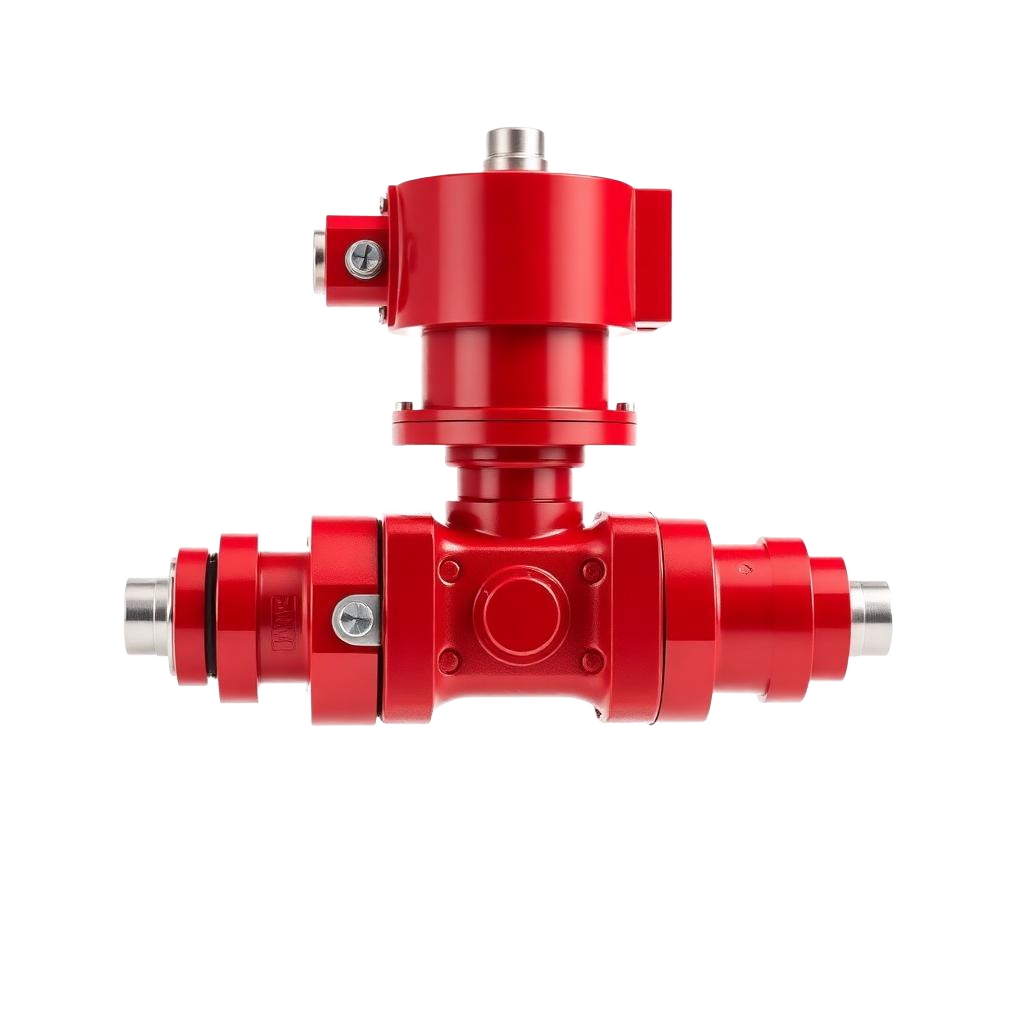

Rack & Pinion Actuators

Compact, dual-piston rack & pinion actuators designed for rapid operation and long-lasting mechanical service.

Extruded aluminium alloy body with hard anodized finish
Symmetrical twin-piston design ensures high cycles
Blowout-proof pinion gear shaft design
Integrated dual-travel adjustment stops
Pre-lubricated for life under standard operating conditions

Technical Specs Request Callback

Robust Manual

Output Torque

Up to 18,000 Nm

Gear Ratio

8:1 to 64:1

Protection

IP67 / IP68 Rated

Interfaces

ISO 5210 / API 609

Category 04

Valve Gear Boxes

A comprehensive range of high-efficiency worm and bevel gearboxes providing precise manual valve operation and automated override.

Self-locking worm gear design prevents back-driving
Spheroidal graphite cast iron casing for heavy-duty load
Precision-machined steel worm and worm wheel components
Lubricated-for-life bearings reduce maintenance
Standard input flange for electric actuator automation override

Technical Specs Request Callback

Intelligent

Torque Range

30 — 3,000 Nm

Power Supply

1-Phase / 3-Phase AC

Operating Speed

15 — 30 seconds / 90°

Bus Protocol

Modbus / Profibus / HART

Category 05

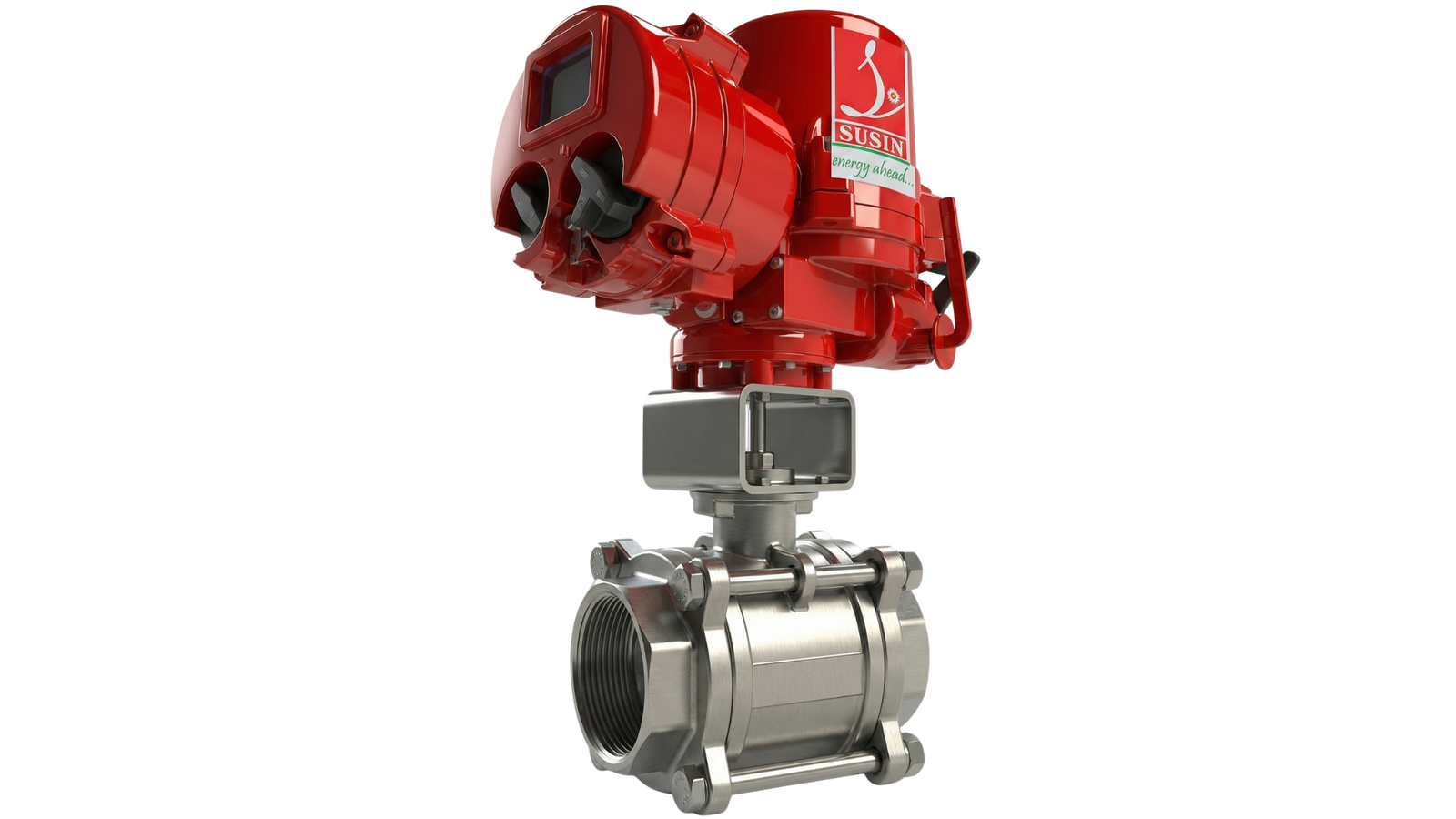

Electrical Actuators

Intelligent multi-turn and quarter-turn electric actuators featuring advanced digital controls, displays, and remote operation capability.

Non-intrusive setup with high-contrast LCD and local controls
Double-sealed terminal enclosure blocks moisture ingress
Electronic torque protection and thermal motor switches
Diagnostics logging for predictive maintenance monitoring
Integrated electronic positioner for modulating control

Technical Specs Request Callback

Critical Safety

Working Pressure

Up to 210 Bar

Output Torque

Up to 250,000 Nm

Safety Rating

SIL 3 certified (TUV)

Stroke Type

Linear & Rotary

Category 06

Hydraulic Actuators

High-integrity linear and rotary hydraulic actuators designed for heavy loads and critical fail-safe shutdown systems (ESD).

Precision honed carbon steel cylinders with chrome-plated rod
Extremely fast closing speeds (< 1.0 second capable)
Self-contained Electro-Hydraulic Actuator (EHA) options
Accumulator safety back-up for off-grid operations
Seals suitable for high-temperature and cryogenic applications

Technical Specs Request Callback

Smart Control

Input Signal

4 — 20 mA analog control

Power Source

24V DC / 110V & 240V AC

Enclosure

IP67 / Explosion-proof

Protocols

HART, Foundation Fieldbus

Category 07

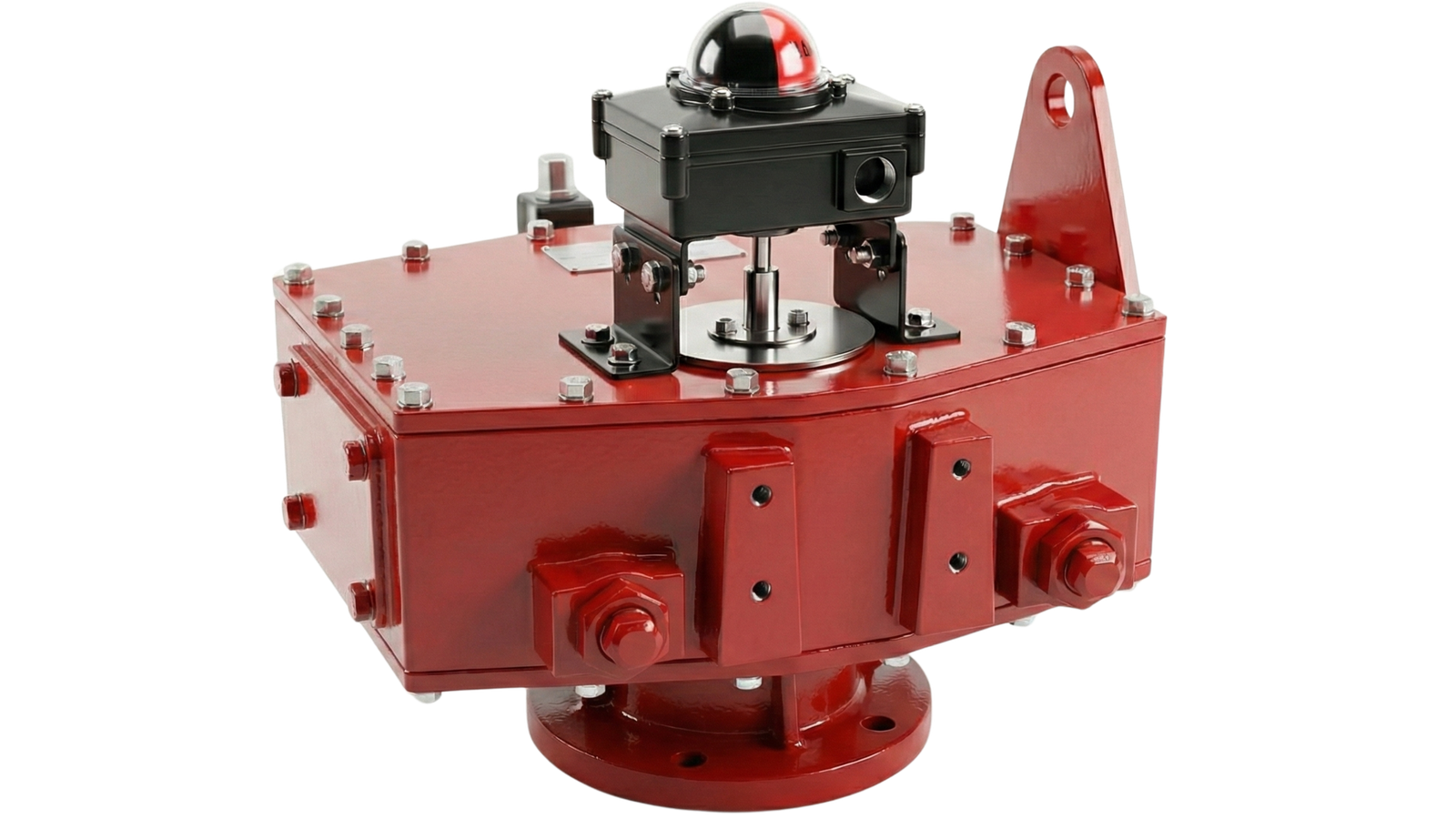

Automation Accessories

A complete range of smart positioners, limit switch boxes, and solenoid valves to customize and secure automated valve assemblies.

Smart electro-pneumatic positioners with auto-calibration
Heavy-duty limit switch boxes with high-visibility indicator domes
Explosion-proof solenoids with ATEX, IECEx, and SASO markings
Pneumatic volume boosters for fast actuation response
NAMUR-standard layout interfaces for simple mounting

Technical Specs Request Callback
